KomShine will release new muiti-function OTDR QX75At present, optical fiber and optical cable testing is an important technical means for optical cable construction, maintenance, and emergency repair. Real-time monitoring and loss measurement evaluation of optical fiber links using OTDR is an ideal method at present. It can accurately measure the location of the connection point and accurately find the event point. , Detect the overall quality of the optical fiber link. The new handheld OTDR QX75 developed by Komshine integrates multiple functions to meet your various needs.
QX75 adopts 7in GUI large touch screen；quick analysis speed; the dead zone is0.5m; dynamic range up to 42dB; 7 test wavelengths, which can meet the needs of user testing.

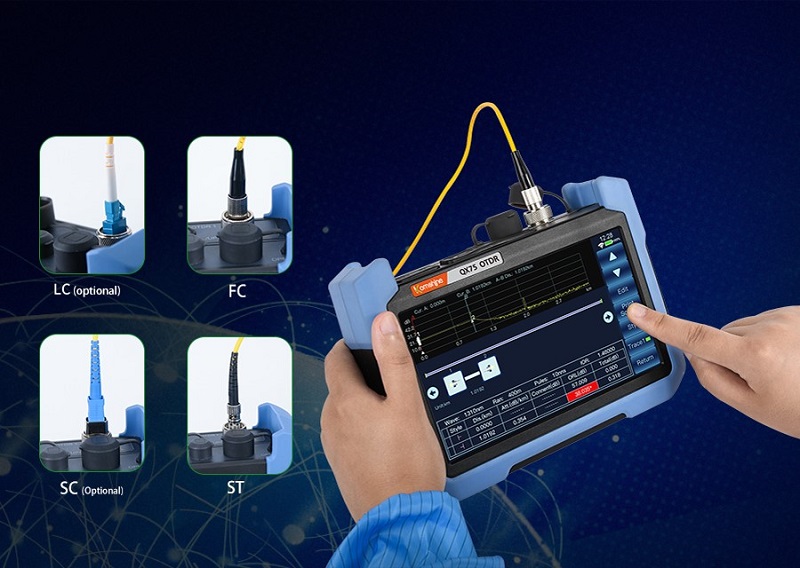

QX75 equipped with FC、ST connector，and SC、LC is optional according to your requirement.

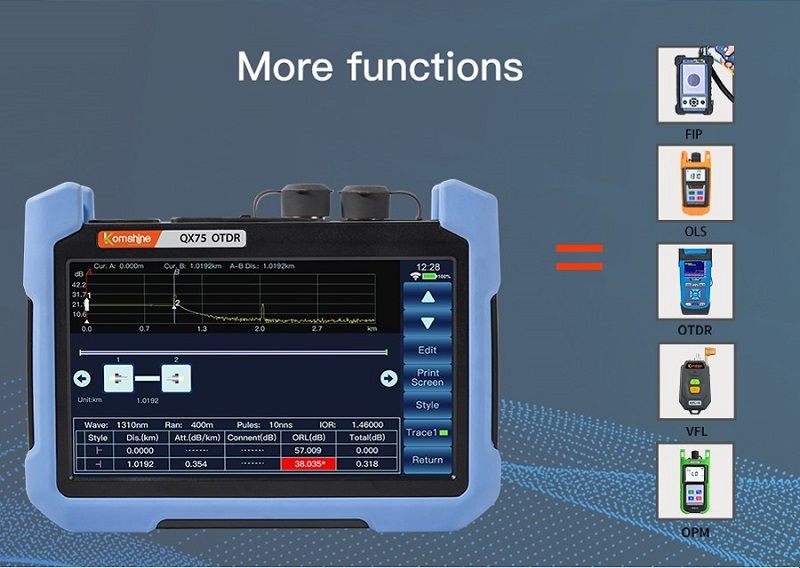

QX75 is a multi-function OTDR, QX75-S model is built-in OPM, VFL, OLS and FIP, which integrate a variety of necessary functions for optical fiber testing in one, every practical and economical. QX75-M support OPM/VFL/FIP and QX75-P support OLS/FIP.

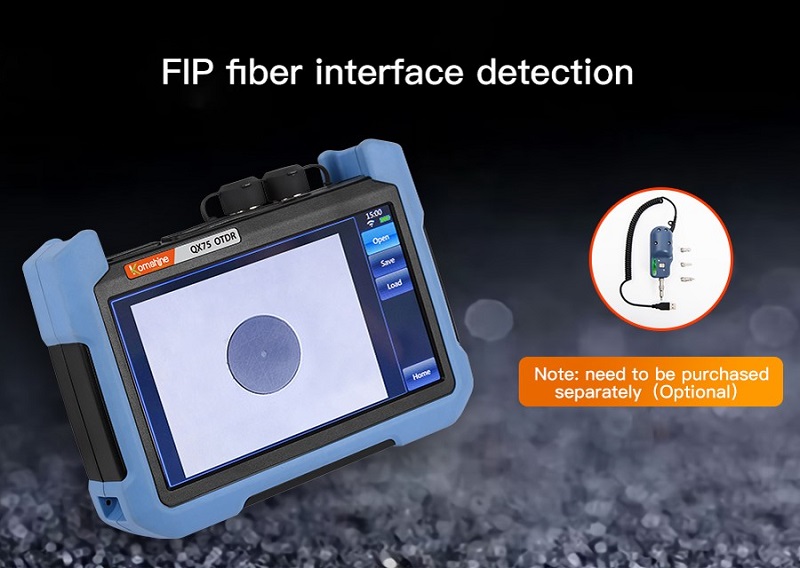

QX75’s FIP used with KIP-600P fiber interface probe，can quickly detect the degree of contamination and cleaning effect of the fiber end face, thereby improving the accuracy of fiber testing.

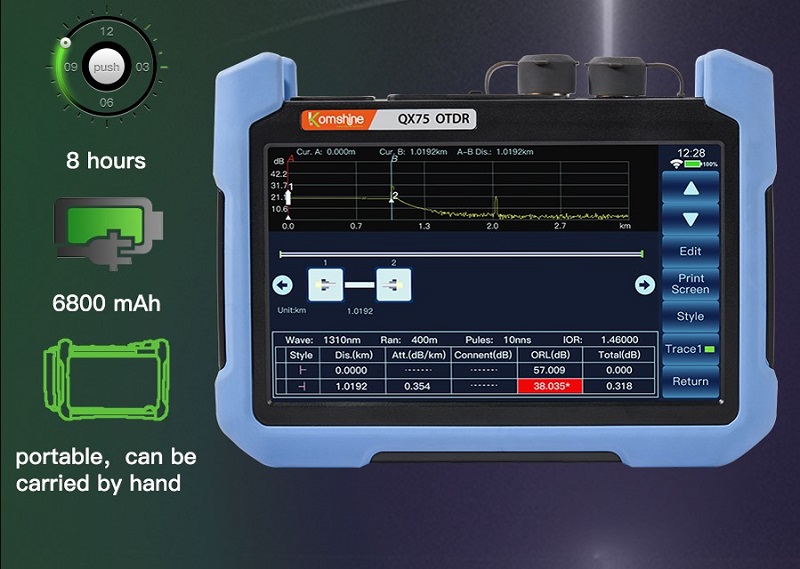

QX75 is equipped with a 6800mAh large-capacity lithium battery, which can stand by for up to 8 hours, which can meet the needs of daily testing; SD card design, easy to store measurement data, can be replaced according to needs; USB interface design, convenient for users to connect to a computer for data analysis. The QX75 body is designed with a silicone protective cover to avoid damage to the machine caused by accidental drops.
Considering that users will encounter harsh working conditions when they go out for testing, the "shockproof, anti-drop, waterproof, and dustproof" functions are specifically designed when designing the QX75.
Inconvenient to carry around? Is it easy to bump and damage during transportation? The "handheld + shoulder strap" dual-purpose tool bag greatly facilitates the user's use, while also effectively protecting the machine.
【Note：QX75 has3 models: QX75-S、QX75-M、QX75-P，Users can choose according to parameters and their actual needs】
