Is there a secret to high-altitude splice fiber? Komshine EX39 optical fiber fusion splicer will hel

Have you ever had such an experience? Occasionally passing by the communication tower in the city, and looking up, always see one or two busy communication figures at the top of the tower. They have worked hard to climb up and down the construction work despite the scorching heat, cold wind and heavy rain. However, the status quo of "high-altitude inspection and ground fiber fusion" is still maintained, which not only increases the difficulty of work, but also increases safety risks and physical fatigue... So when will the communication personnel get rid of the status quo and be safer and more effectively to complete the daily work?
In order to adapt to various difficult outdoor construction environments such as high-altitude fiber splicing, Komshine has developed a high-quality, economical, practical, compact and portable optical fiber fusion splicer to liberate the hands of the communicator--EX39 Mini FTTx optical fiber fusion splicer
The leader of high-altitude work

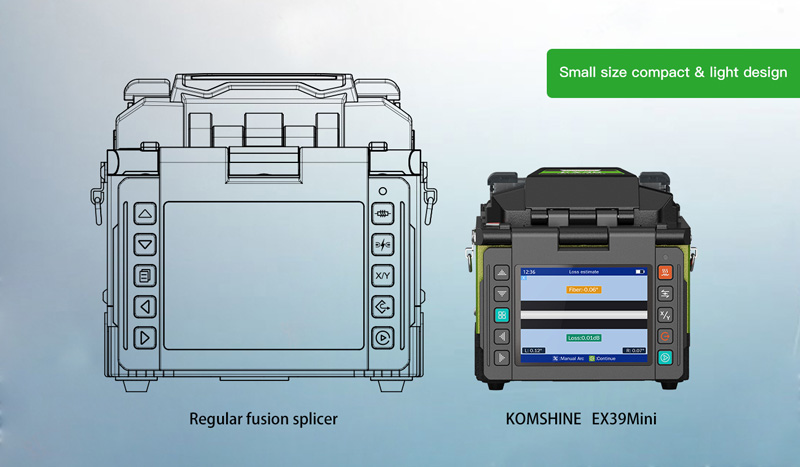

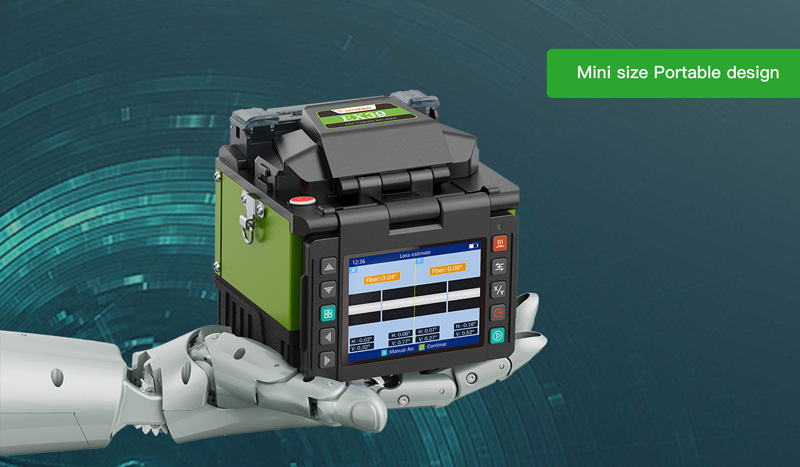

If you want to climb high, you must first light yourself. The Komshine EX39 adopts a mini palm-shaped design and weighs only 1.35kg including the battery. The user can easily hold the machine with one hand. Compared with the bulky and heavy-duty large-volume fusion splicer, it is more flexible; the EX39 is small but delicate, the well-designed fresh and natural green is visually comfortable, and the finely polished shell makes the fuselage have a good touch.

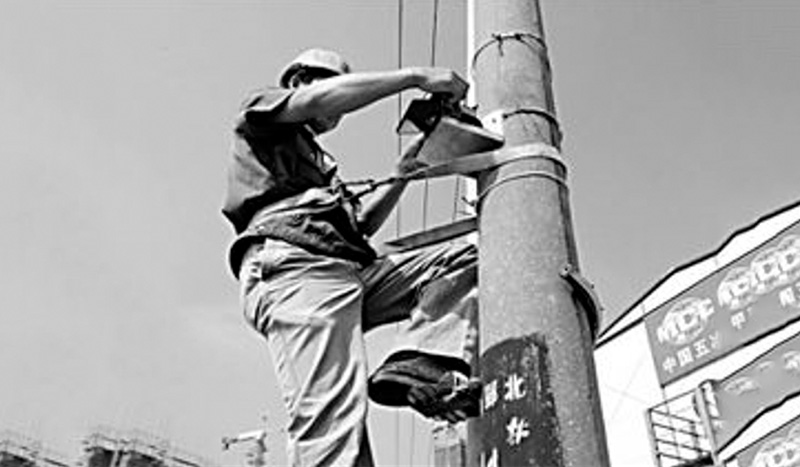

Of course, the lightness of the fuselage alone is not enough. With a fusion splicer, it is not enough without an aerial workbench. The high-altitude console of the fusion splicer you think is like this:
NO! NO! If the metal bracket is installed on the communication pole in advance for each high-altitude operation, it will not only increase the workload, but also greatly reduce the work efficiency. What the communication person needs should be such a high-altitude console↓

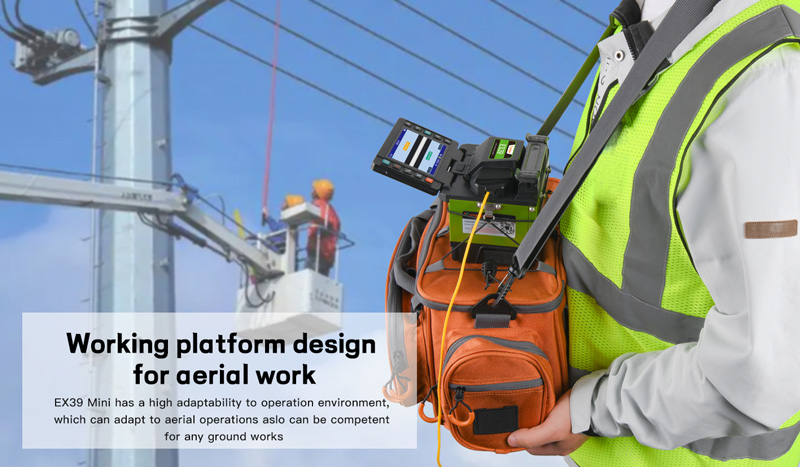

EX39 provides customers with the multi-functional carrying bag shown in the picture above. The carrying bag with special rainproof design is very light. The carrying bag has a cushion inside and a hard top cover, which is used as a platform for placing the welding machine. The rope is used to secure the fusion splicer. Tie a wide adjustable length rope to both ends of the carrying bag, wrap it around the neck, and then use another wide rope to fix the carrying bag to the waist, and a simple aerial work platform is formed.
Space saving for ground work
The main workflow of fiber splicing is cutting, hot-melting, and cooling. In daily work, we cannot predict what kind of working environment the next project will face: narrow passages, muddy mountain roads, and uneven ground. It is specially designed for communicators with narrow operating space and limited operating platform--the operating bracket of the optical fiber fusion splicer is very necessary.

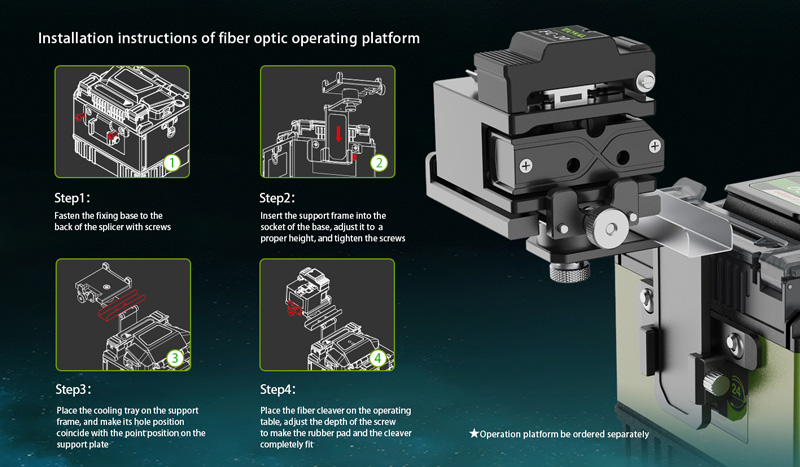

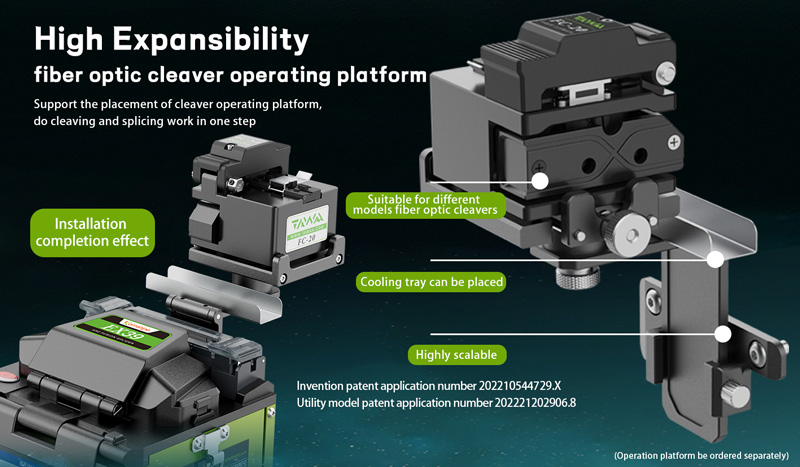

This operating bracket is a specially designed base specification according to the screw hole spacing on the rear of the EX39 body; the base is fixed on the fusion splicer by screws to achieve a stable and firm installation effect; the user can adjust the height of the bracket independently, and screw it by hand to fix it ;
By adjusting the top screw, the operating platform can be adapted to various types of cutting knives; the individually designed cooling tray is fixed by magnetic attraction, which is convenient for users to take at any time.
The operation bracket concentrates the entire workflow in the same operation space, making the entire work flow like flowing water, which can greatly improve the work efficiency of front-line operations. Isn’t it very considerate?
Tool-less electrode replacement

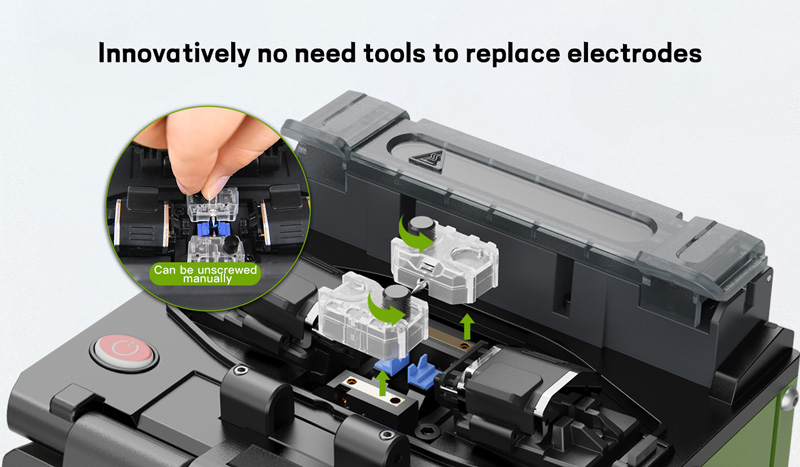

EX39 also adopts an innovative electrode design, adding a new layer of "armor" to the electrode rod. The new appearance design, fully transparent material, the internal structure of the electrode is clear at a glance, even if it is ultra-small, it is not lacking in rich shapes. Users do not need tools, they can replace the electrode rods immediately by turning the screw by hand. Novices can use EX39 without pressure. The electrode life is up to 5000 times (replaceable), which not only greatly saves work time, but also saves project costs!
Excellent fiber fusion performance

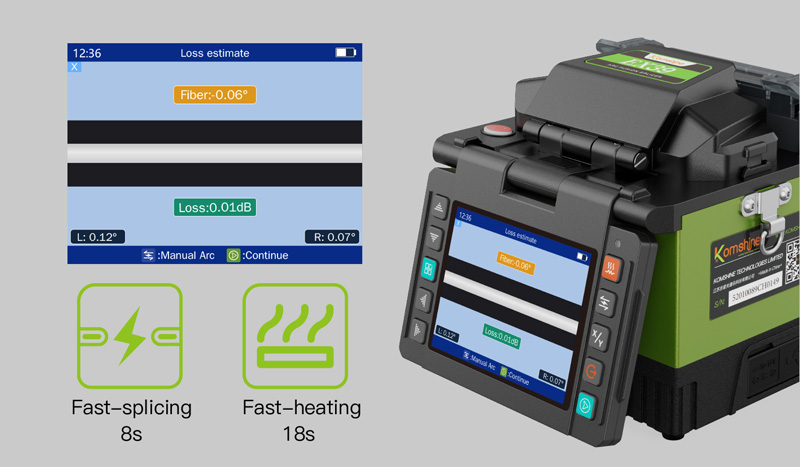

In addition to its excellent hardware structure, EX39 is not inferior to any small leather cord machine in terms of fiber fusion performance! Komshine EX39 Mini optical fiber fusion splicer has built-in four motors, which can realize 8S automatic splicing, 18S automatic heating, and the typical splicing loss is 0.01dB, realizing the double improvement of working speed and quality.
In addition, EX39 is also equipped with a three-in-one fixture, which is compatible with various types of optical fibers, suitable for leather cables, patch cords, pigtails, and bare fibers, with strong usability; 3400mAh lithium battery can support 120 times of splicing & heating.
Warranty for three years

1. We, Komshine, do hereby warrant our Fusion splicer、OTDR、Test & Measurement、Tool、Fiber Optic Cleaning products, be free from defects due to defective materials or workmanship for a period of  3  years from the date of shipment.

2. We, Komshine, do hereby warrant our accessories such as Battery, Cleaver, Thermal Stripper, AC adapter, Screen, Heater, Carry Case which are included in the standard package of Fusion Splicer, OTDR products, be free from defects due to defective materials or workmanship for a period of  1  year from the date of shipment.


High-altitude work and construction in small spaces, work can be simplified if it can be simplified, and tools can be carried less if we can. We do not have a pair of wings to fly, and we do not have the natural ability to climb and jump. , what we need is a safer, more effective and more economical communication tool, EX39 is a practical and economical FTTx optical fiber fusion splicer created by Komshine for the vast number of communicators to flexibly adapt to the operating environment, making you a worry-free "air master" ".
