Komshine new product OTDR launch cable

Recently, our new product OTDR launch cable KFLC-2 has finally been introduced after multiple tests in the laboratory. KFLC-2 is mainly used to measure the insertion loss and reflectivity of the near end connection and the far end connection of the optical fiber  by OTDR. This product will greatly reduce the data error existing in the OTDR test and make the test more accurately.

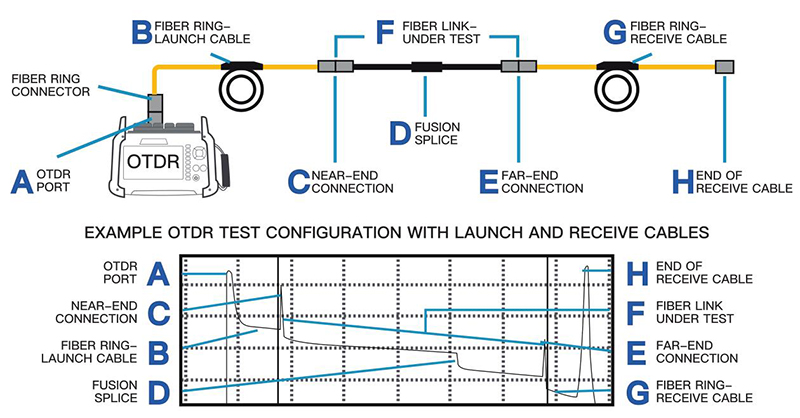

Cover the dead zone

When using the OTDR, there is an inevitable pain point --dead zone. When the OTDR detects the optical fiber link, it cannot detect or locate the event point in the link within a certain distance due to reflection factors. During the test will have at least a dead zone: OTDR and optical fiber’s connection, this dead zone in the starting position, leads to the blind area within the scope of the tested optical fiber cannot be accurately detected, even with the event, also may be covered, so in the testing we can use another optical fiber cover the dead zone, this is the launch cable that want to take things.

After years of user research, KFLC-2 through layer upon layer to simplify, it’s very deft, when we are in the outdoor or more complex operations environment, portable launch cable will greatly reduce the difficulty.  Its shell uses ABS, deft, surface hardness, very smooth, easy to clean, size stability.



Small but great usefull

Although it is very small, as upgrade on the basis of the version 1, is also a complete product, connotation is rich.  KFLC-2 can customize the longest length is 2000 meters, which is such a light box can load so long fiber, patent of appearance design at the same time, the arc well coated inside bare fiber, special material, make optical fiber does not impact pull is affected by the outside.

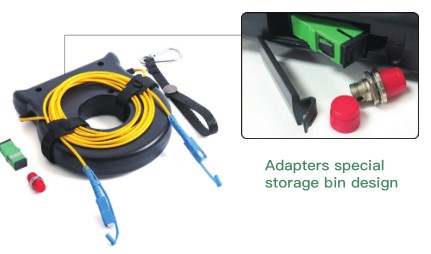

KFLC - 2’s detail is outstanding, the top of the product has a storage warehouse can equip two couplers, in addition, the product of connection is almost no limit, the fiber connector can be customized, APC/UPC, SC/FC/LC/ST.  No matter what brand of OTDR you use, choose KFLC - 2, let the tested optical fiber event nowhere to hide.


Product patent number:201930605808.6
